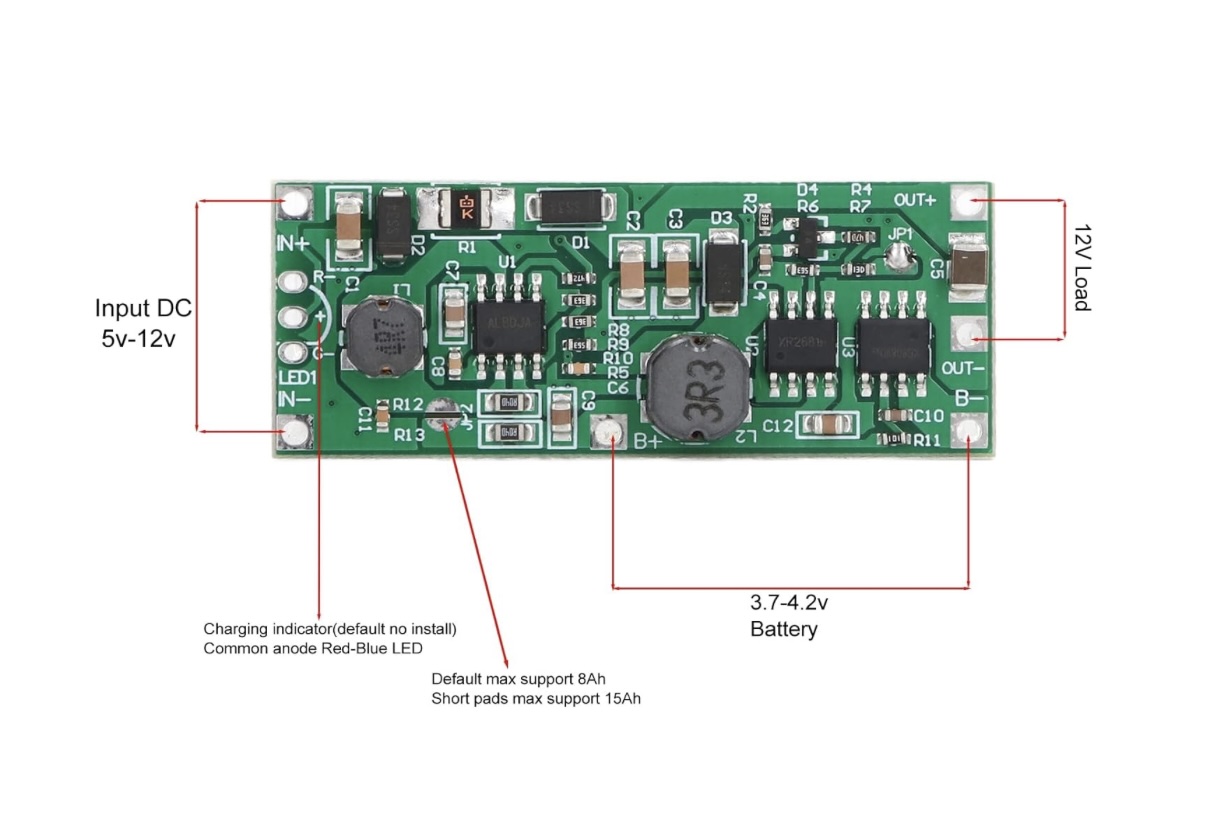

12V Step Up Battery Charging Module

• Dissipation Power: 9W/12W
• Supply Voltage: DC 5.0V-12.0V
• Operating Temperature: -40-+85
• Application: Power Supply Module
• Output Voltage: DC 9.0/12.0V
• Output Current: 1A

Features:

• Support charging and discharging at the same time.
• Auto Charging: Charge the battery when there is power, and automatically use the battery to supply power when the power is off. The battery automatically charges and discharges.
• Easy to Install: Designed to have a light weight and a compact size as well, the installation of this boost charger board is very convenient.
• Wide in Utility: Can work as power supply, battery charger, mobile power supply, power conversion, infrared alarm, switch and other network equipment, router, battery car modification, etc.
• Stable Working: Able to step up the input voltage to charge the battery, the battery charger module can provide you with uninterruptible power supply.
• Good Protection: With input reverse connection protection, overheating protection, over discharge protection and short circuit protection
