Description
Features:
- Small and compact design,
- Low cost,
- Pocket size ideal for hobby & DIY users ,
- Auto polarity display, 2~3 times readings per second.
- 3 1/2 digits, 7segment, 0.5″high LCD Display.
- Max display: 1999, Auto polarity display.
- Small and compact design.
- Sampling 2~3 times readings per second.
- Diode assembly test / Transistor hFE test.
- Low battery voltage indication.
Specification:
- Model: DT-830B
- Max AC Current: 10A
- Max DC Voltage range: 1000V
- Max AC Voltage range: 750V
- Resistance Measurement: 200 Ohm-2000K Ohm range
- Power Supply: 9V Battery (Not Included Here)
- Color: Black
- Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78” (L*W*H)
- DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2) - AC voltage: 200V 100mv±(1.2% + 10)
750v 1v
14.DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2) - Resistance: 200Ω0.1Ω±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω±(1% + 2)

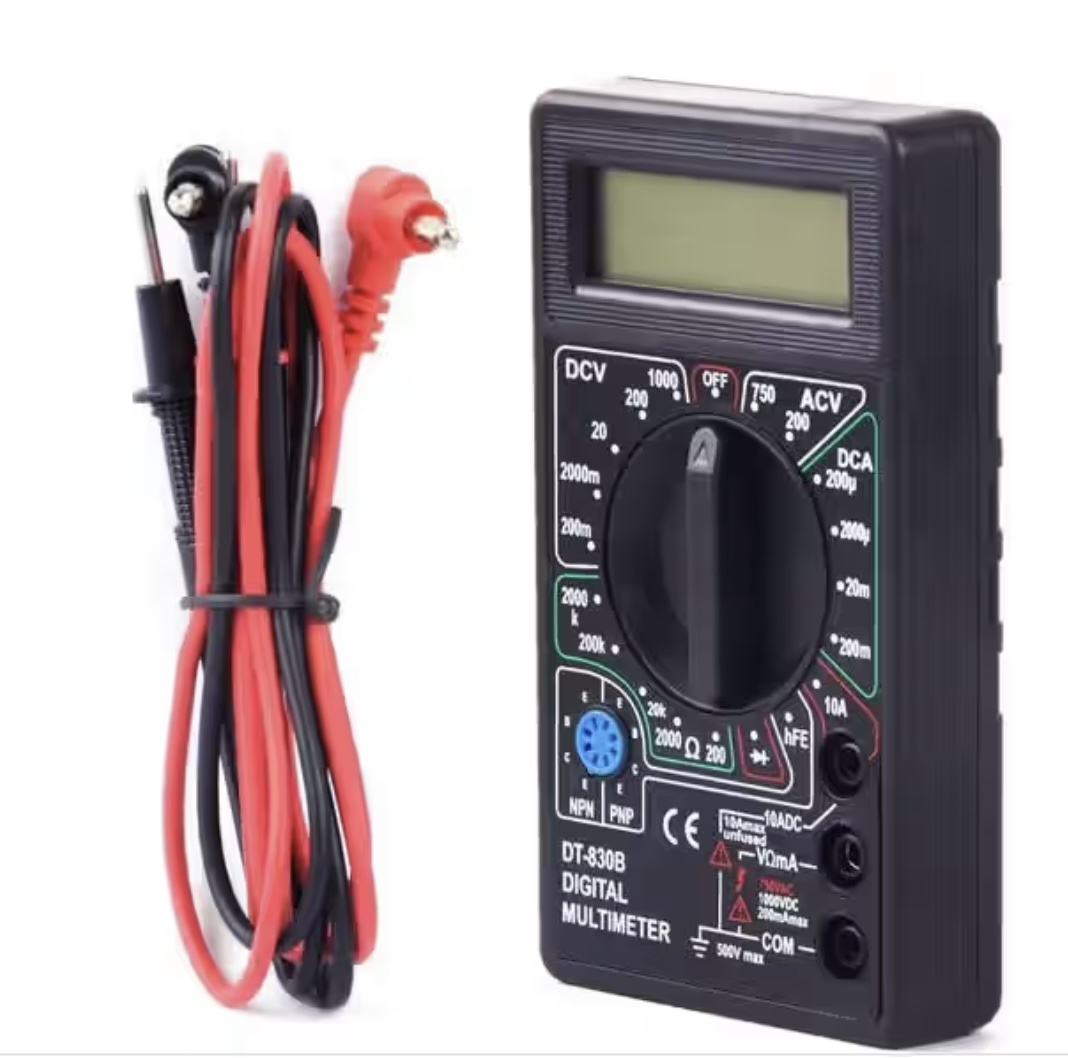

ITEM IS BLACK : YELLOW IMAGE FOR ILLUSTRATION ONLY
Packing List:
1 x Multimeter
2 x Probes (Red & Black)
