Description

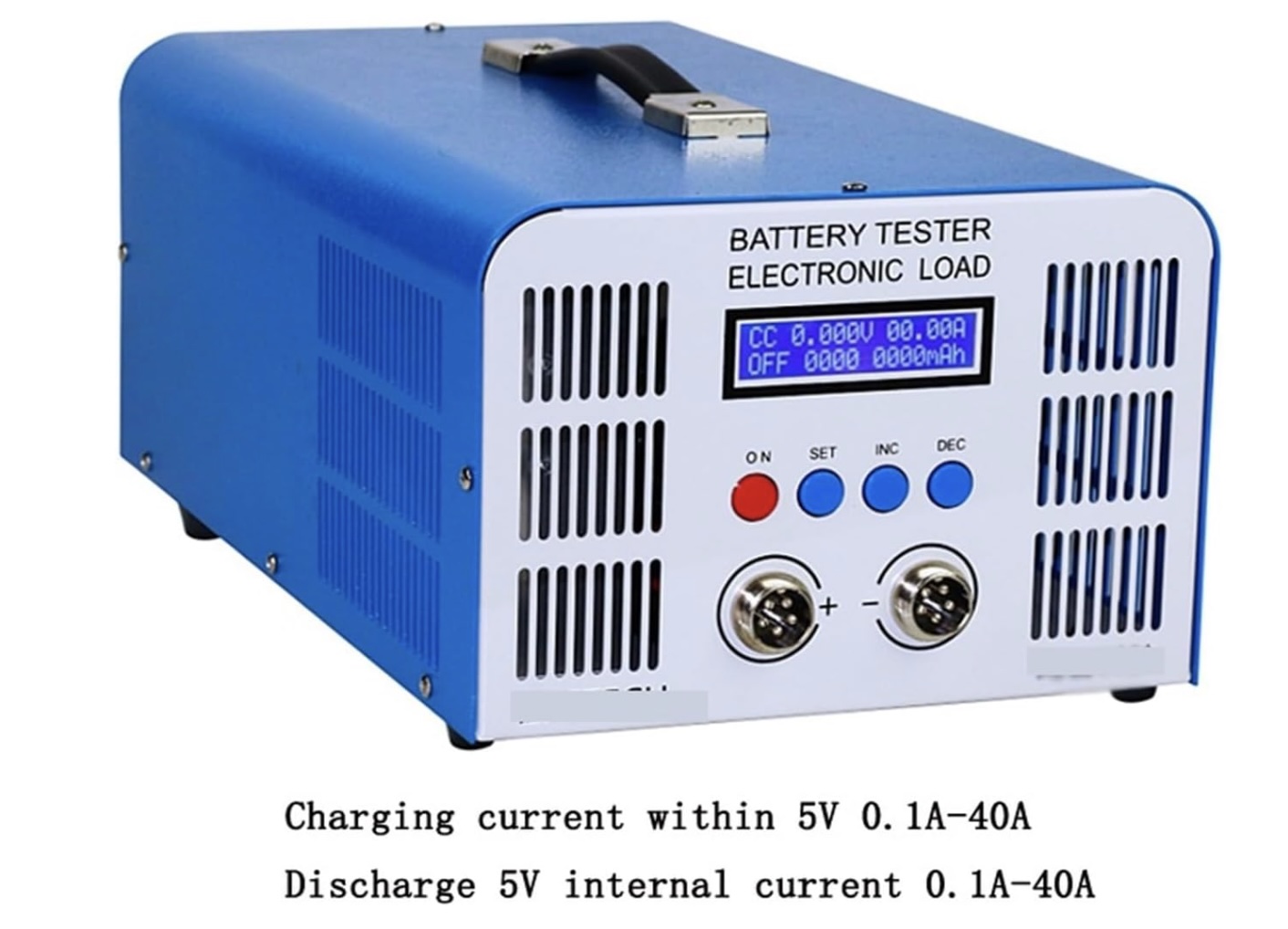

BC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online software with more extensions.
This model default 220V power supply.
Product Parameter
- Model: EBC-A40L
- Voltage range: charge 0-5V, discharge 0-5V
- Voltage accuracy: 0.2% ± 0.03V
- Current range: charge 0.1-40A, discharge 0.1-40A
- Current accuracy: 0.2% ± 0.01A
- Discharge mode: CC constant current discharge / CP Constant power
- Discharge termination: time / voltage is lower than the set limit / Manual
- Discharge power: maximum 200W
- Charge mode: CV constant current constant voltage charging
- Charge termination: constant current is less than the set limit / Manual
- Capacity test: 10Ah, the resolution of 0.001Ah
- 10Ah-100Ah, the resolution of 0.01Ah
- above 100Ah, the resolution 0.1Ah
- Cooling method: fan active cooling
- Equipment Supply: 220VAC

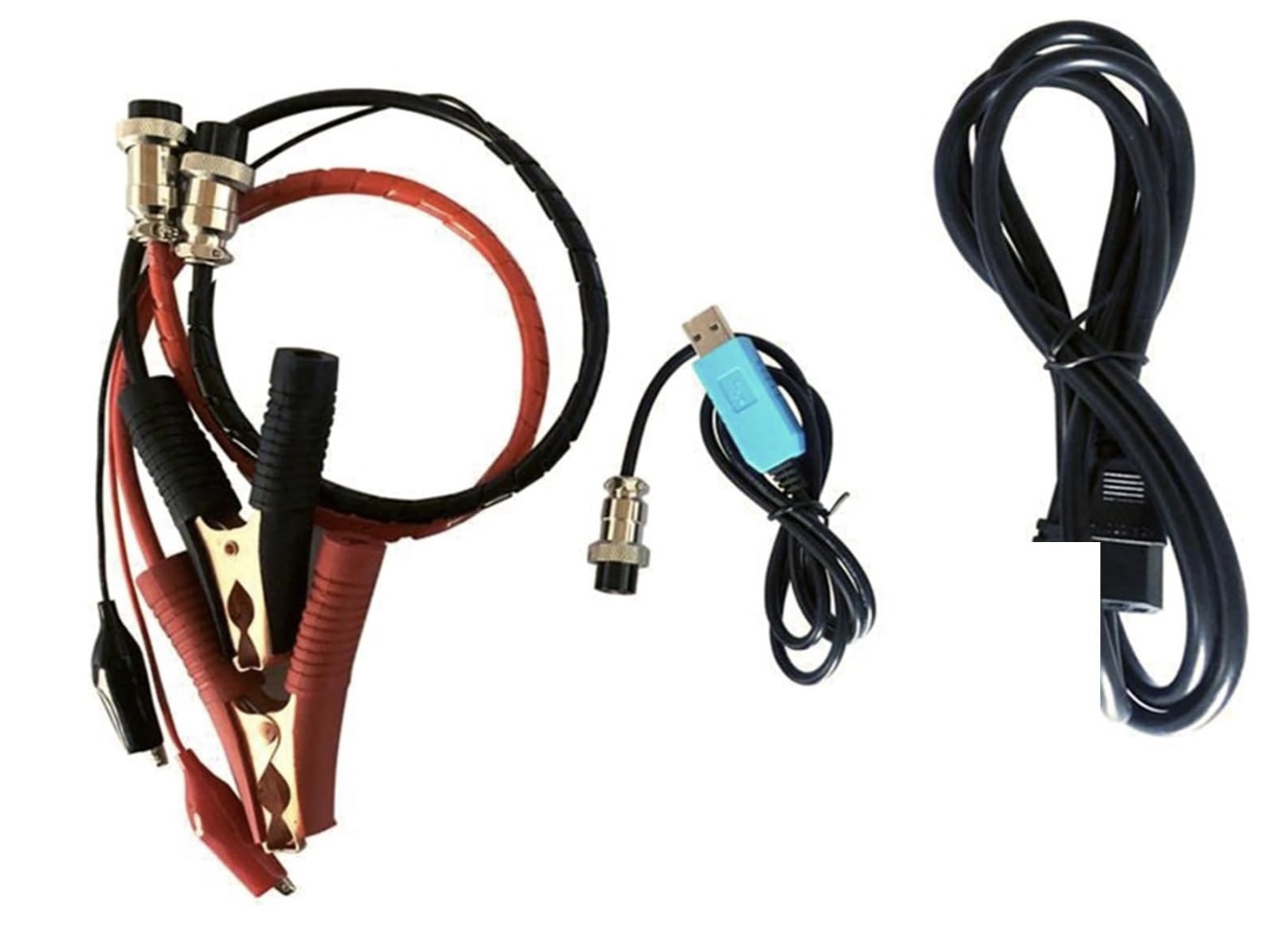

Packing List
1x tester
1x Online line
1x test lines
1x power cord
