HX-2S-JH20 2S 10A 7.4V 18650 Lithium Battery Protection Board

Description

Specifications:

• Dissipation Power: 2S
• Operating Temperature: -40 to +85°C
• Functions: Electronic Module Range of application: Switch And Sensor For Arduino STM
• Size: 46.7 * 23 * 3.15mm

  Technical Parameters

  Model: HX-2S-JH20

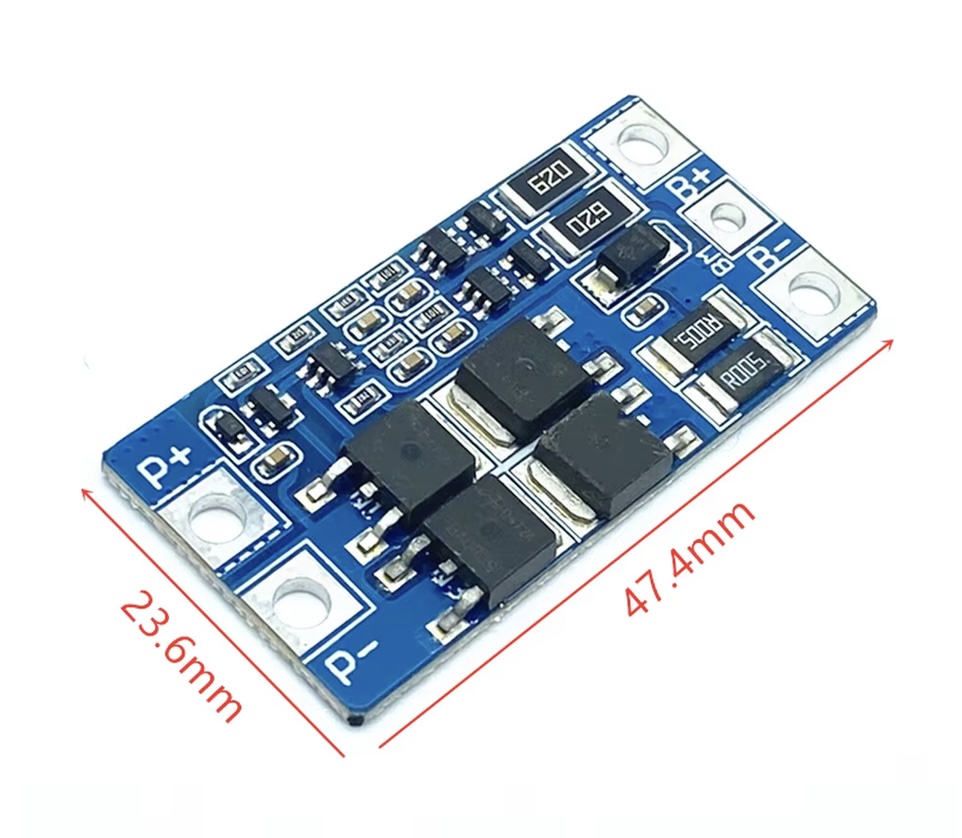

  Size: 46.7*23*3.15MM
  Overcharge voltage range: 4.25V ± 0.05V
  Over-discharge voltage range: 2.9V ± 0.05V
  Upper limit working current: 10A
  Working temperature: -40 ° C ~ 50 ° C
  Upper limit instantaneous current: 20A
  Storage conditions: -40 ° C ~ 80 ° C
  Quiescent current: less than 10uA
  Effective life: more than 50,000 hours
  Internal resistance: less than 300mΩ
  Short circuit protection: protection,charge recovery
  Charging voltage: 8.4V-9V
  Protection board size: 41*8*2.2MM
  Solder Joint Description

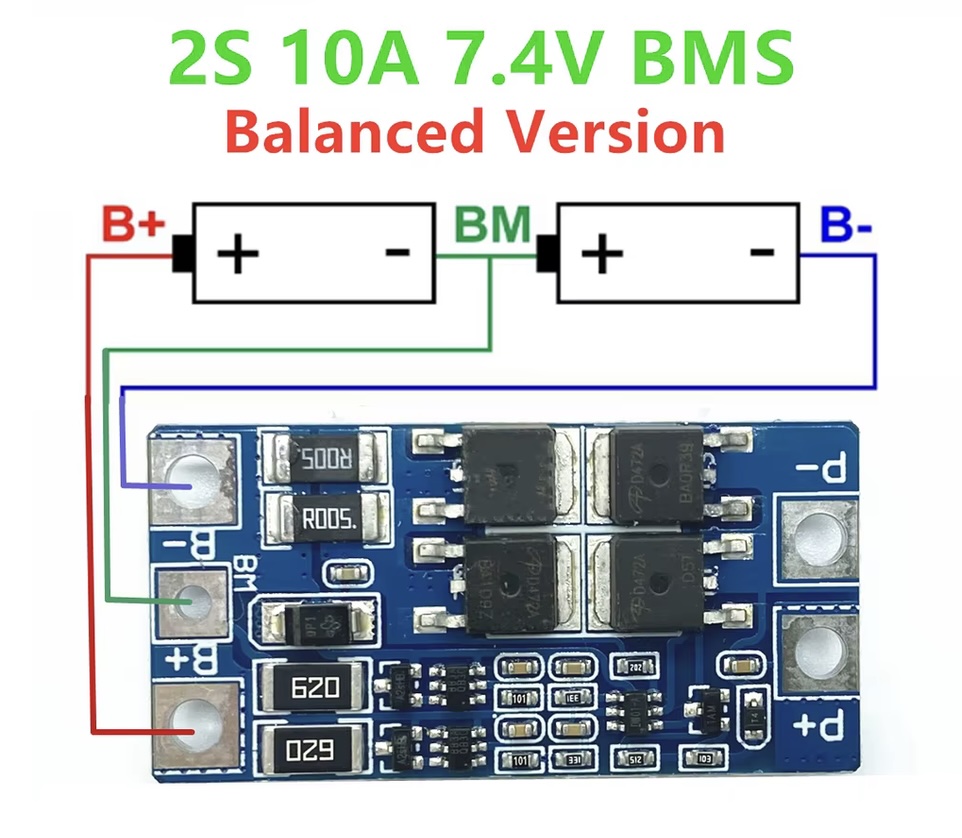

  B+: Connect the battery positive
  B-: Connect the battery negative
  MB: Connect the connection point between battery 1 and battery 2

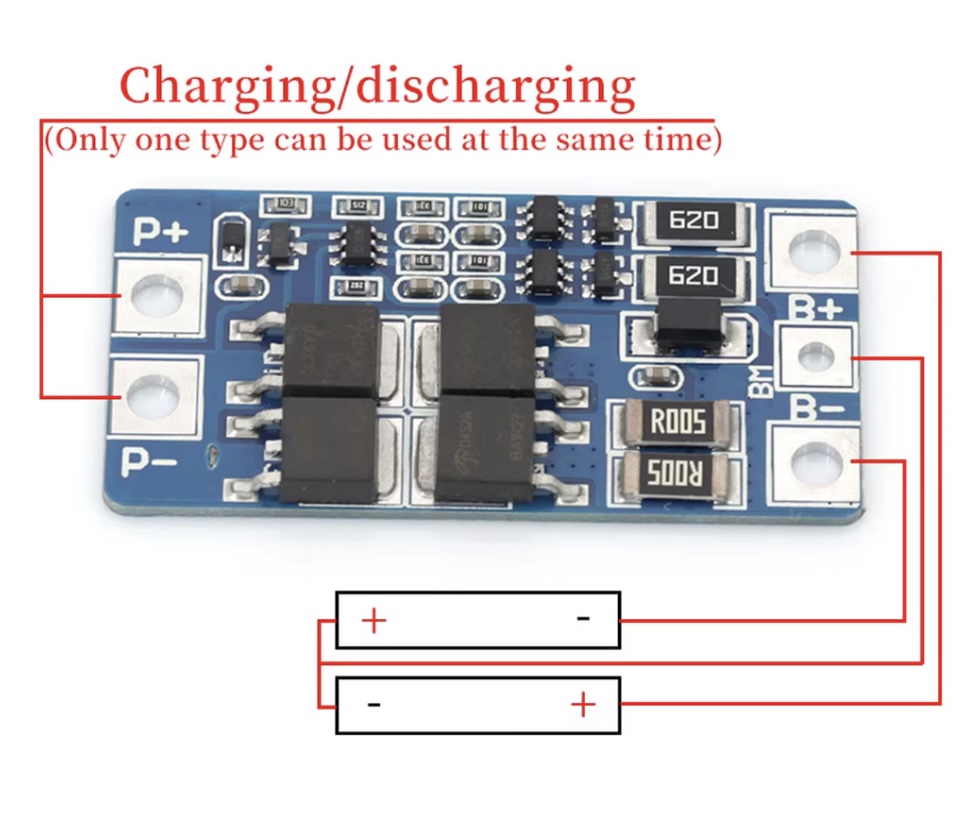

  P+: Charge/discharge terminal positive (common terminal/discharge terminal)
  P-: Charge/discharge terminal negative (common terminal/discharge terminal)

Product sell points:

• Balanced Charging Function:Equipped with an 8.4V balanced charging function, optimizing battery life and performance.
• 1 8 Particle Board|Bms Kicker|Operating Temperature Range:Operates reliably from -40°C to +85°C, ensuring consistent performance in diverse environments.
• Maximum Working Current:Handles up to 10A, ideal for high-drain applications requiring robust power management.
• Effective Life:Boasts over 50,000 hours of effective life, ensuring long-term reliability and durability.
• Short Circuit Protection:Features short circuit protection to safeguard your battery and restore functionality after an incident.

Features:

**Robust Protection for Your 18650 Lithium Batteries**

The HX-2S-JH20 2S 10A 7.4V 18650 Lithium Battery Protection Board is a crucial component for safeguarding your batteries in a wide range of applications. Designed for use with 2S lithium batteries, this board ensures optimal performance and longevity. With a robust operating temperature range of -40 to +85°C, it is built to withstand extreme conditions, making it ideal for use in various environments. The customizable nature of the board allows for tailored solutions to meet specific requirements, making it a versatile addition to your electronic projects.

**Advanced Battery Management for Arduino and STM**

This protection circuit module is not just a power circuit board; it’s a sophisticated battery management system (BMS) that monitors and protects your batteries. The board’s overcharging range of 4.25-4.35V with a precision of 0.05V ensures your batteries are charged efficiently and safely. The overvoltage range of 2.5-3.0V with a precision of 0.05V prevents overcharging, extending the life of your batteries. The board’s maximum working current of 10A and instantaneous current of 20A are designed to handle high-power applications, while the static current of less than 10uA ensures minimal power loss during standby periods.

**Reliable Performance and Compact Design**

The HX-2S-JH20 is more than just a power circuit board; it’s a testament to reliability and performance. With an effective life of more than 50,000 hours, you can trust this board to keep your batteries safe and functioning for an extended period. The board’s compact size of 46.7 * 23 * 3.15mm makes it easy to integrate into various projects without taking up excess space. Whether you’re working with Arduino or STM, this protection circuit module is an essential component for any electronic project that requires reliable power management.

Packing List:

1 x HX-2S-JH20 2S 10A 7.4V 18650 Lithium Battery Protection Board
