Description

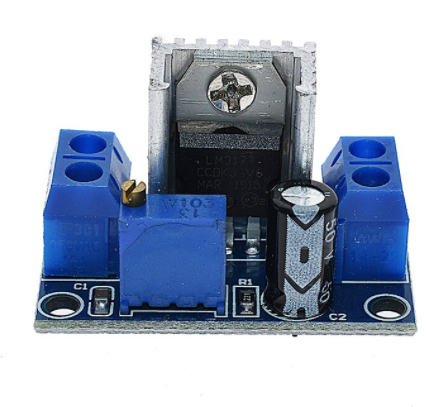

The 220V DIY LM317 regulator is a nice little module to get the power you want from the power you have.
Specifications:
Product name: lm317 adjustable regulated power supply module
Product size: 53.0 mm * 22.0 mm * 14.80 mm
Yan color: blue product weight: 16.53 g (packaging)
1. Output current: 1.5 A (minimum), 2.2 A (typical)
2. The input and output voltage difference (VI – VO) : 40 VDC (maximum)
3. Adjustable output voltage range: 1.2 ~ 37 v
4. Working temperature: 55 ° C to + 150 ° C
5. : output current 1.5 A
6. Input voltage: 4.2 ~ 40 V
7. The working temperature: 0 ° C to 125 ° C
8. Characteristic frequency: 100 (MHz)
Using the tutorial:
Input mode: VIN input level, GND input cathode
Output: VOUT is output level, GND output is negative
Adjust way: first right after the input power supply (4.5 V -) between 40 V, output voltage with a multimeter monitoring and tuning potentiometer (general chronological booster, the backward turn step-down)
Notes from our engineers:
The voltage should be set at the loaded condition ITO output impedance.
