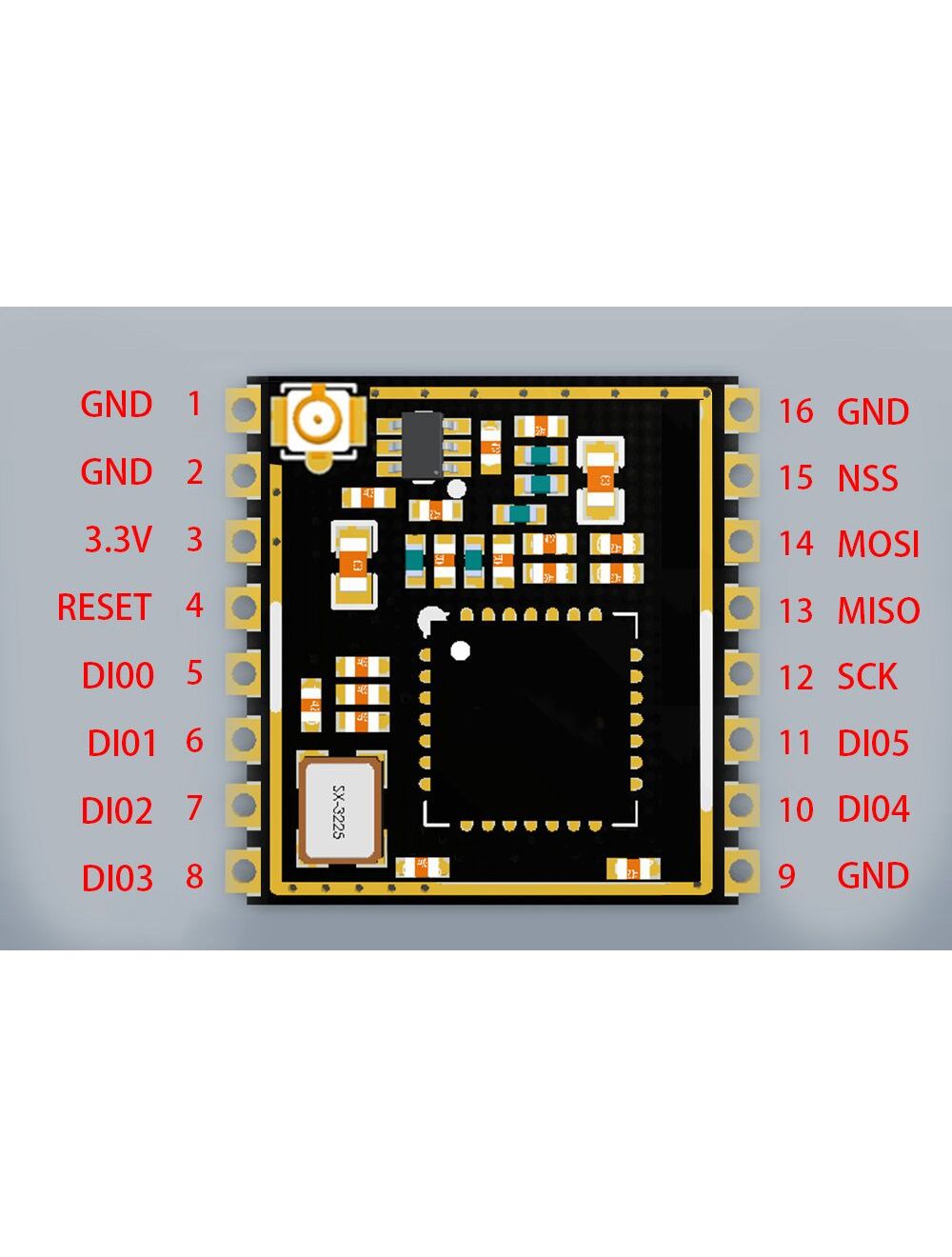

LoRa Ra-02 SX1278 Module 433MHz

R145.00 INC VAT

13 in stock

Select Location:
Main Inventory

13 in stock

Product Code: N/A SKU: Temp-043 Categories: , , , Tags: , , , ,

Description

Description

Ra-02 is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.

The LoRa series module Ra-02 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH’s patented LoRa modulation technology, the SX1278 has a high sensitivity of -141 dBm with a power output of +18 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.

Features

  • LoRa ™ Spread Spectrum modulation technology
  • Constant RF power output at + 20dBm-100mW voltage change
  • Half-duplex SPI communication
  • Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
  • Automatic RF signal detection, CAD mode and very high speed AFC
  • Packet engine with CRC up to 256 bytes
  • Small footprint dual-row stamp-hole patch package

Specifications

  • Communication distance: 15KM
  • Sensitivity: down to -148dBm
  • Programmable bit rates: up to 300kbps
  • RSSI dynamic range: 127dB
  • Wireless frequency: 433MHz
  • Working voltage: 1.8-3.7v
  • Working temperature: -40-+80 ℃

Package

LoRa Ra-02 Module SX1278 433M Wireless  x 1



Additional information

Weight 0.001 kg
