MOS PWM Trigger Switch Drive Module 15A 400W

R9.98 INC VAT

5 in stock

Description

The PWM Mosfet module is suitable for controlling pulse width modulation controlled receivers such as LED PWM power supplies, as well as for speed control of DC motors

  • The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
  • Wide voltage, the perfect support for PWM
  • Easily control high power devices
  • Input PWM to achieve motor speed control, lamp brightness control

Specifications

  • Operating Voltage: DC 5V – 36V;
  • The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces,  DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
  • Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary  cooling conditions, the maximum current up to 30A.
  • Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,  solenoid valves, etc., you can enter
  • PWM, motor speed control, lamp brightness.
  • Availability: unlimited switch
  • Operating temperature: -40-85
  • Dimension: 34mm x 17mm x 12mm

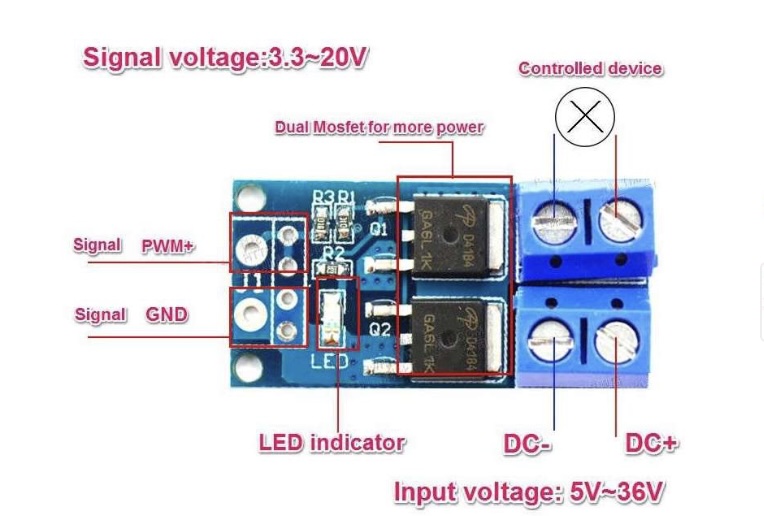

Screenshot

Packing List:

1 x MOS PWM Trigger Switch Drive Module
