Description
The Stepper Motor with efficient heat dissipation has large torque and high precision without losing steps,This means that you can save on the cost of replacing or repairing the engine.
The motor with low power, uniform speed, stable performance, , and no step to lose during the operation, which ensures the extrusion mechanism stable operation.
Low Noise, this greatly reduces the vibration and noise when the motor is working, provides you with a relatively quiet environment.
Perfectly fits with the high-strength synchronous wheel and synchronous gear, it realises accurate constant ratio, uniform revolution, and high transmission efficiency, while avoiding system errors and obtaining accurate results.
This stepper motors can be used in various area, such as 3D printer; automation equipment etc.
Specifications:
- Model :23HS5628
- Phase : 2
- Step Angle : 1.8°

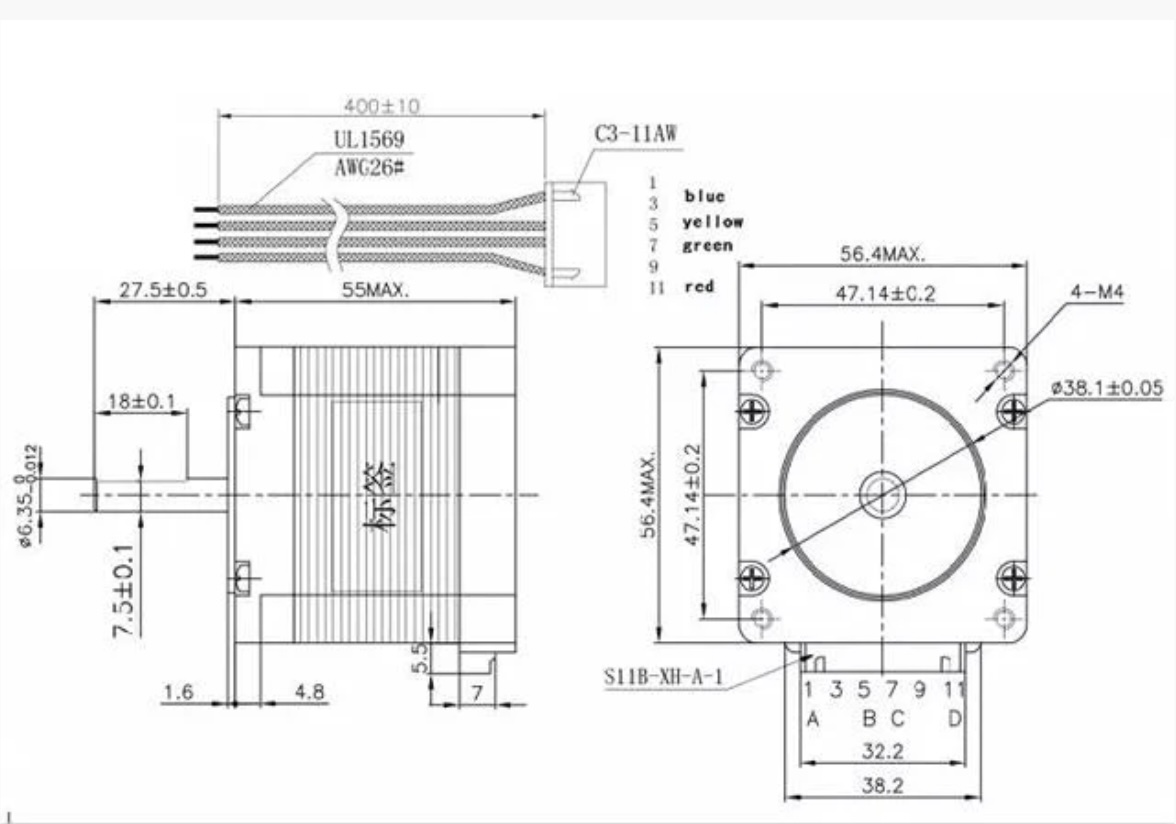

- Motor Frame Size : 57 x 56mm
- Shaft : “D” shaft 22xФ6.35
- Outlet way : “4” plug line
- Motor leads : 30cm Wire
- Adapter drive : Two-phase step drive
- Scope : 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
- Packaging Machinery, Stage Lighting, Laser engraving, Automation
- Equipment, Non-standard Equipment, Placement machine ect.
Electrical Specifications:
- Rated Voltage : 2.5V
- Rated Current : 2.8A
- Resistance/Phase : 0.9Ω
- Inductance/Phase ：2.5（mH）
- Holding Torque : 126 (N.cm)
- Inertia Of Rotor 0300(G. cm2)
- Lead :4
- General Specification:
- Precision angle step : ±5% (full step, no charge)
- Resistance accuracy : ±10%
- Precision inductance : ±20%
- Temperature rise : 80deg Max (rated current, 2 phase on)
- Ambient temperature : ( – 20°)-(+ 50°)
- Insulation resistance : 100MΩ Min, 500VDC
- Insultion Force : 500VAC for a minute
Packing List:
1 x Nema 23 23HS5628 4-lead Stepper Motor 57mm 6.35mm Shaft
