Description
The RM065 Trimmer Potentiometer is a small, single-turn carbon film preset resistor (or trimpot) used for “set-and-forget” circuit calibration, voltage adjustment, and tuning.
Key Specifications
- Type: Single-turn, open-frame carbon film potentiometer (blue-and-white housing)
- Size: 6mm diameter
- Resistance Range: 10 Ω to 1 MΩ (common values include 10K, represented by code
202or similar markings)
- Power Rating: 0.1W at 50°C
- Tolerance: ±30%
- Taper: Linear (B)
- Operating Temperature: -10°C to +70°C
- Rotational Life: ~20 cycles (designed for infrequent factory or service calibration, not continuous user adjustment)
Common Uses
- Reference voltage adjustment in power supplies
- Sensor calibration and biasing
- Fine-tuning gain, frequency, or threshold levels on printed circuit boards (PCBs)

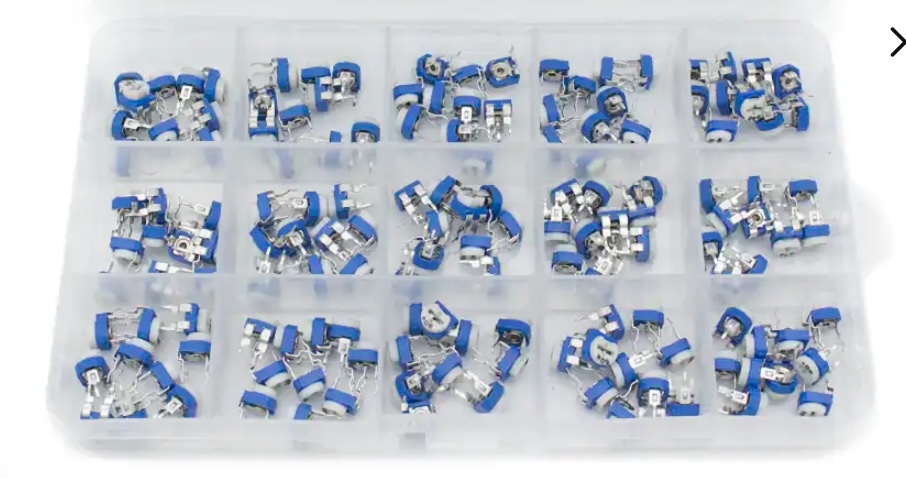

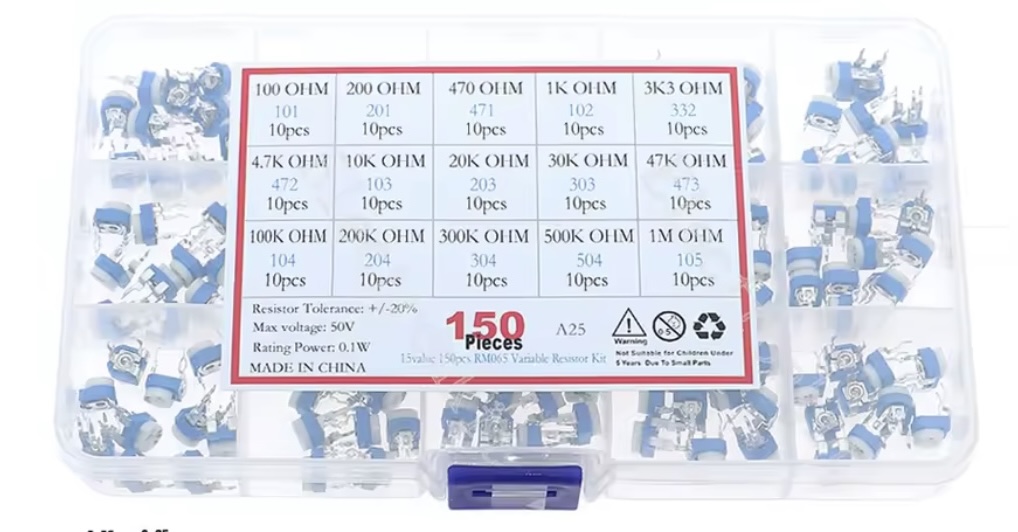

Packing List:
