Description
The Reed Switch Y213 2×14mm Normally Open is a compact and reliable magnetic proximity switch designed for non-contact sensing applications. It features a normally open (NO) configuration, where the contacts close in the presence of a magnetic field and open once the field is removed. This simple yet effective switching mechanism makes it a favorite in automation, security, and DIY electronics projects.

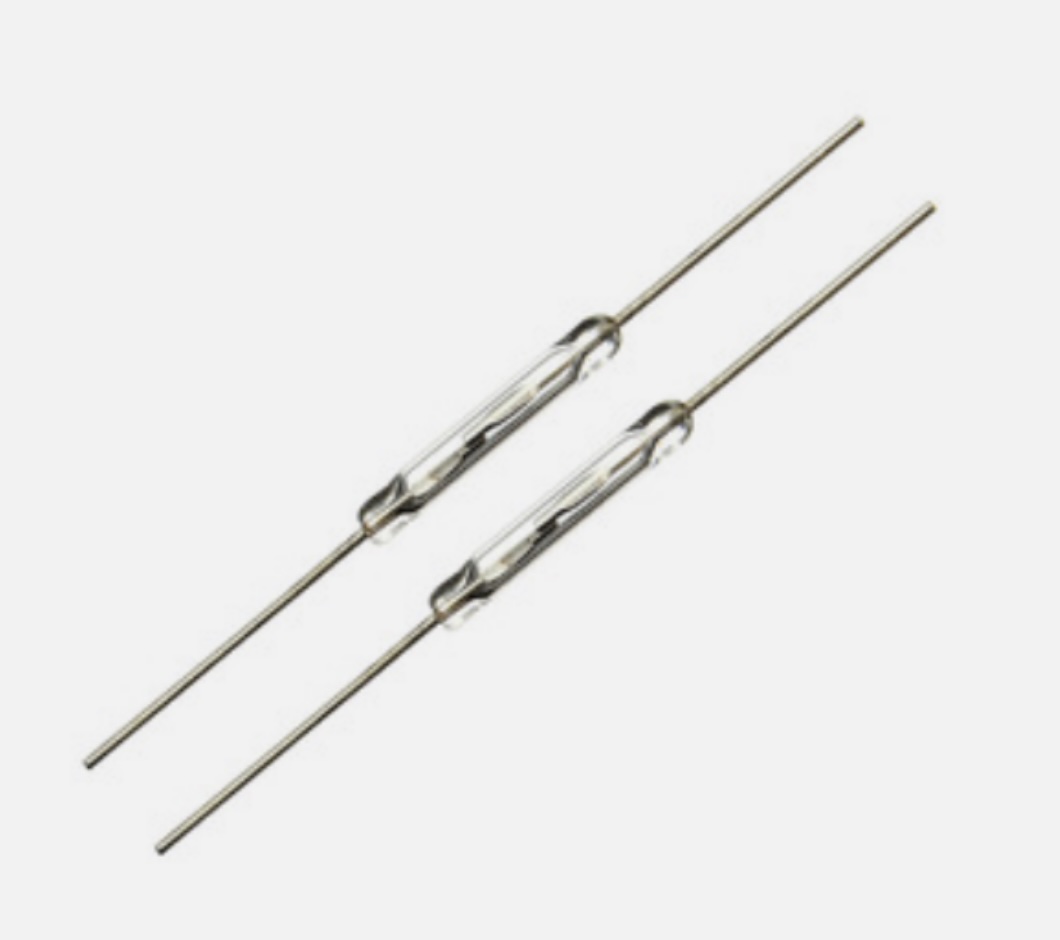

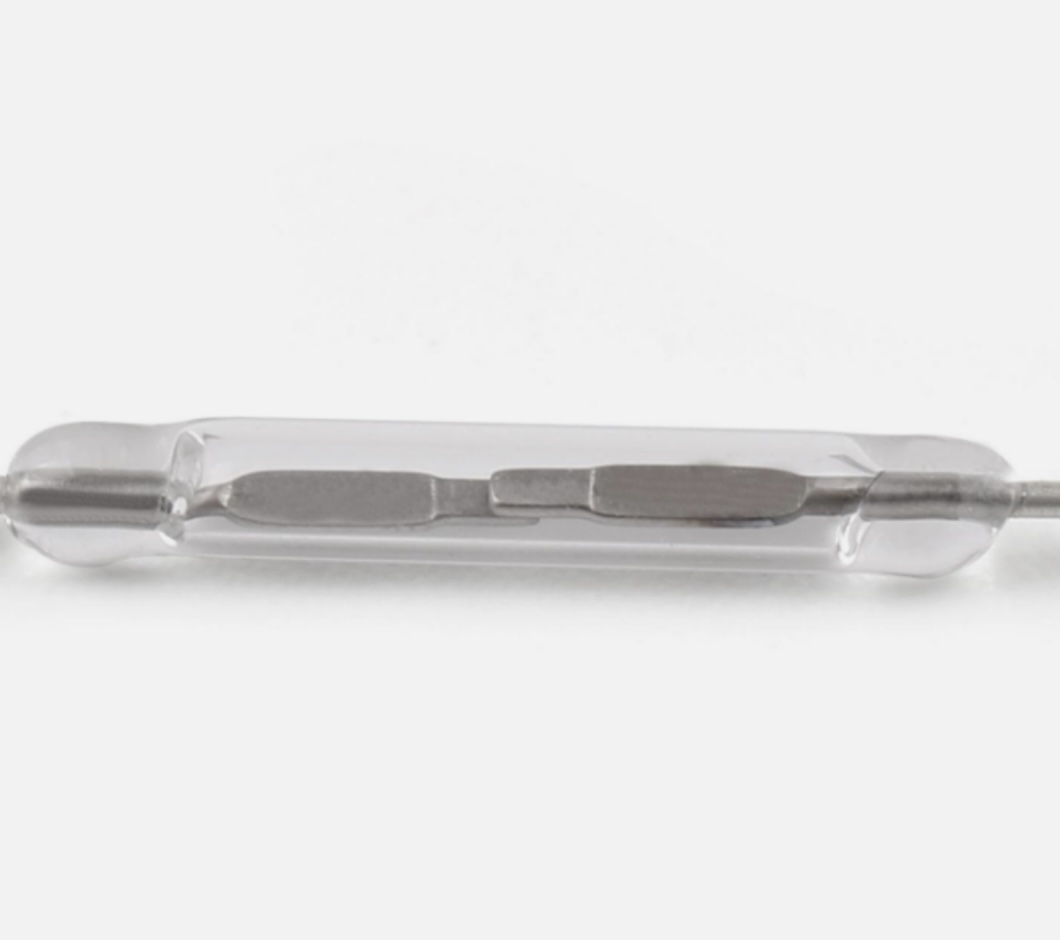

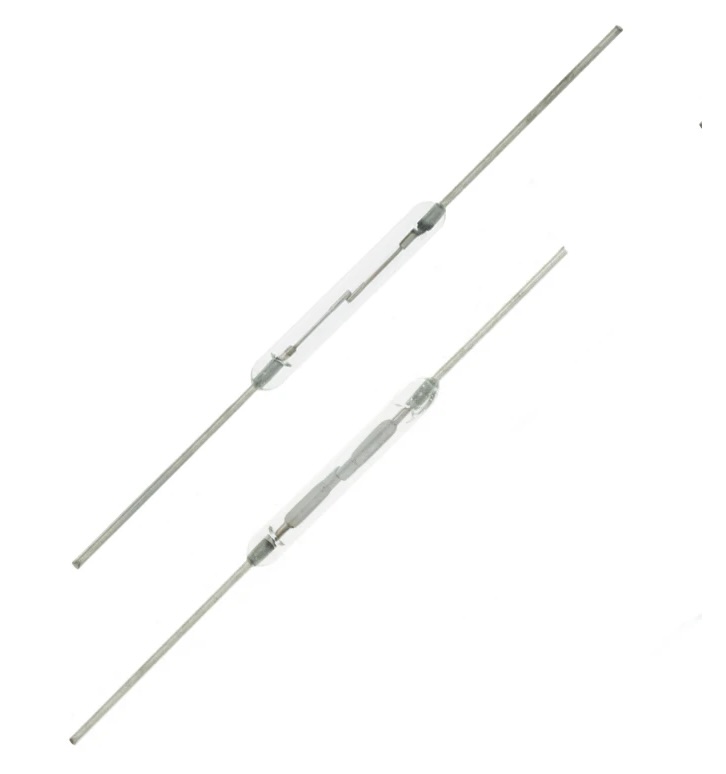

Housed in a durable glass tube with 2mm × 14mm dimensions, the switch contains two ferromagnetic reeds that operate without physical contact. With a maximum current rating of 1.2A and a wide temperature operating range of -50°C to +140°C, this reed switch is suitable for harsh and demanding environments.
Key Features
- Normally Open Reed Switch Y213
- Magnetic activation – no physical contact required
- Glass-encapsulated body for enhanced durability
- Compact 2mm × 14mm form factor
- Handles up to 1.2A current
- Works across a wide temperature range
Technical Specifications
| Product Name | Reed Switch Y213 2×14mm Normally Open |
| Switch Type | Magnetic Proximity Switch (Normally Open) |
| Activation Method | Magnetic Field Presence |
| Dimensions | 2mm × 14mm |
| Contact Rating | 1.2A Max |
| Switching Voltage | Up to 200V DC |
| Contact Resistance | <150 mΩ |
| Operating Temperature | -50°C to +140°C |
| Shell Material | Glass (sealed) |
| Poles | Single Pole, Single Throw (SPST) |
| Mounting Type | Through Hole / Free Lead |
Applications
- Door and window security systems
- Contactless limit switches in machinery
- Automated lighting and appliance control
- Proximity detection and magnetic sensors
- DIY Arduino or Raspberry Pi projects
Why Choose This Reed Switch?
The Y213 2×14mm Reed Switch offers an efficient, reliable, and simple solution for implementing magnetic-based switching in compact or rugged setups. Its normally open configuration and wide operational range make it an excellent fit for security, automation, and embedded sensing applications.
Packing List:
1 x Y213 Reed Magnetic Induction Control Switch 2X14mm
