Description
Electrolytic capacitor is a kind of capacitor. The metal foil is a positive electrode (aluminum or copper). The oxide film close to the positive electrode is a dielectric. The cathode consists of conductive materials, electrolyte (electrolyte can be liquid or solid) and other materials. Since electrolyte is the main part of the cathode, electrolytic capacitor gets its name.
Mainly used in power filter, signal filter, signal coupling, resonance, DC isolation and other circuits.
Product function:
When the starting winding of the motor is started, the current leads the starting current by one phase angle, thereby obtaining the starting torque and making the motor easy to start.
The functions of electrolytic capacitor in switching power supply include:
1. DC blocking: The function is to block the passage of current and allow AC to pass through.
2. Bypass (decoupling): Provides a low impedance path for some parallel components in an AC circuit.
3. Coupling: As a connection between two circuits, it allows AC signals to pass through and transmit to the next level of the circuit.
4. Filtering: change the sawtooth wave wave after rectification into smooth pulse wave, close to DC. 5. Energy storage: Storage of electrical energy for release when necessary.
Product parameters:

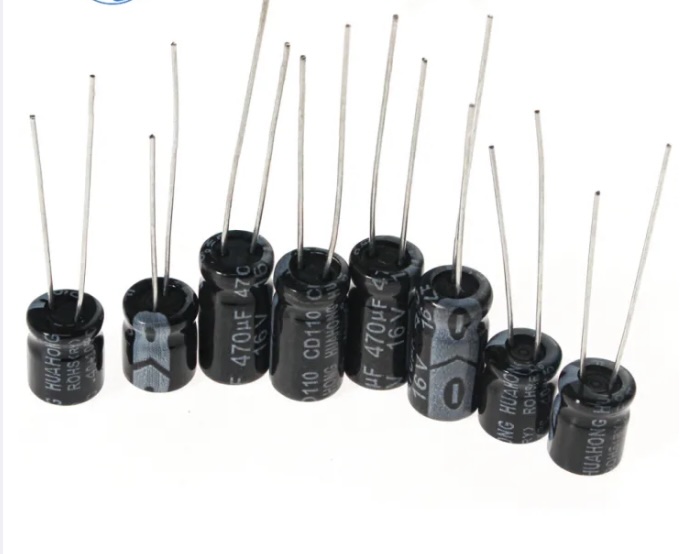

Product name: in-line Aluminium electrolytic capacitor Dielectric material: aluminum electrolysis
Product appearance: cylindrical power characteristic: medium power frequency characteristic: high frequency
Lead wire type: radial lead wire allowable deviation: ± 20% Installation method: direct insertion
Packing List:
1 x DIP Aluminium Electrolytic Capacitor as per selection
