Description
Specifications:
- Model Number: FK130SH Motor
- Continuous Current(A): none
- Construction: Permanent Magnet
- Type: Micro Motor
- Protect Feature: Totally Enclosed
- Commutation: Brush
- Output Voltage: none
- Rated voltage: 3V

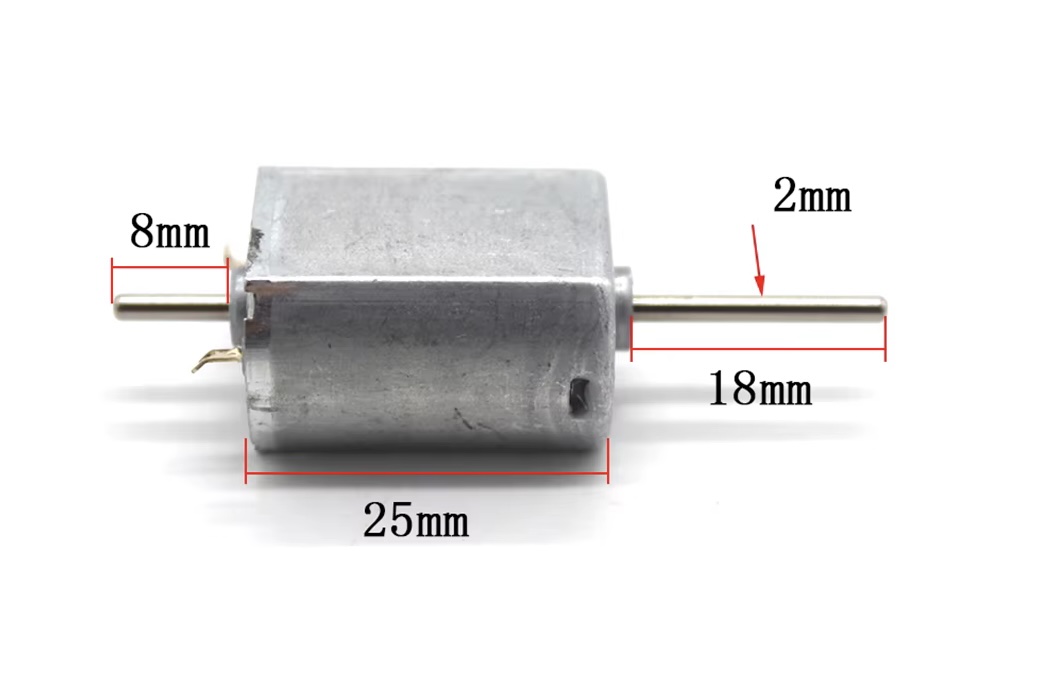

- Motor Size: 25*15.3*20.3mm
- Axis Diameter: 2mm
- Weight: 23g

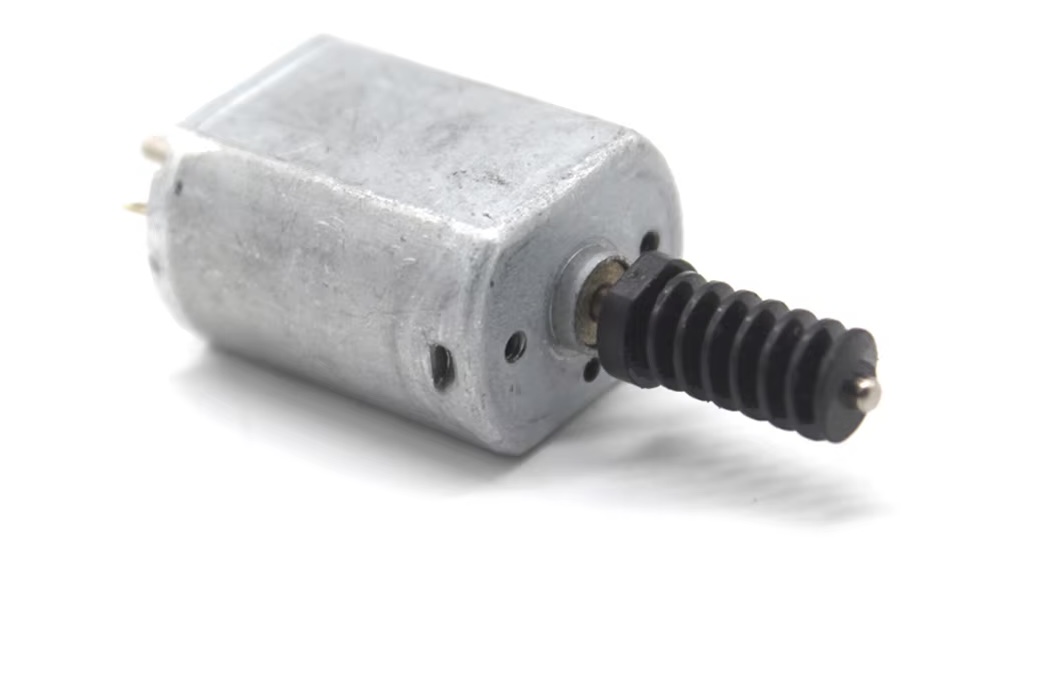

- Worm parameters: length 15mm, diameter 6.58mm, modulus 0.64.
- Output shaft diameter: 2mm
- Output shaft length: Front: 18mm, Back: 8mm
- Without Gear:
Voltage:3.0V No-load speed:2200RPM Current:0.02A
Voltage:6.0V No-load speed:4750RPM Current:0.03A - With Gear:
Voltage:3.0V No-load speed:2200RPM Current:0.02A
Voltage:6.0V No-load speed:4400RPM Current:0.03A
Packing List:

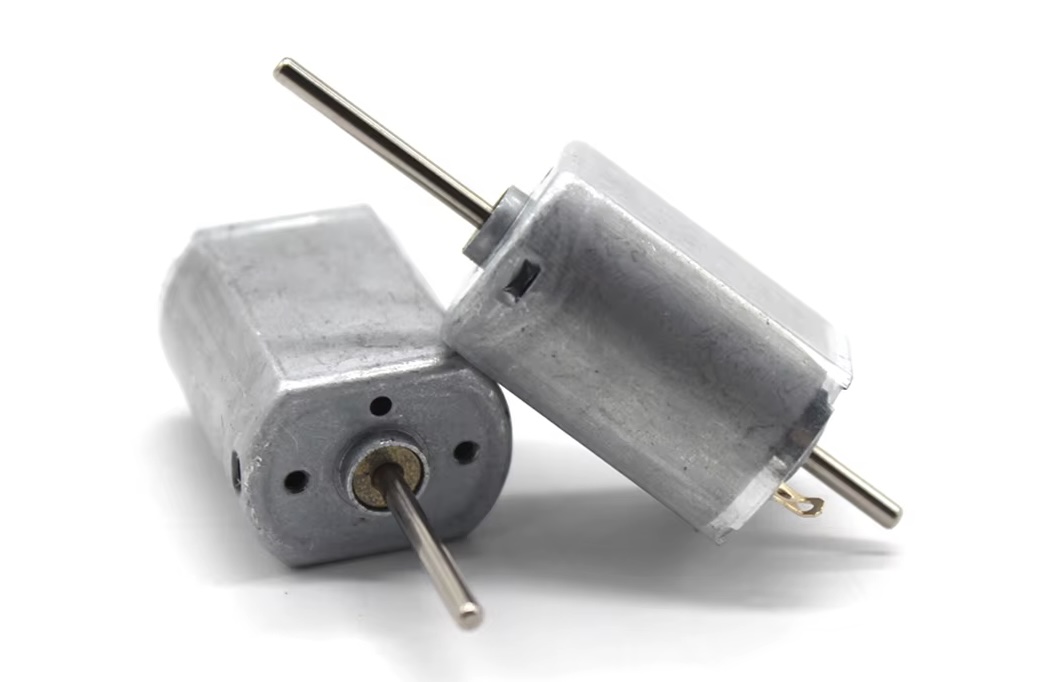

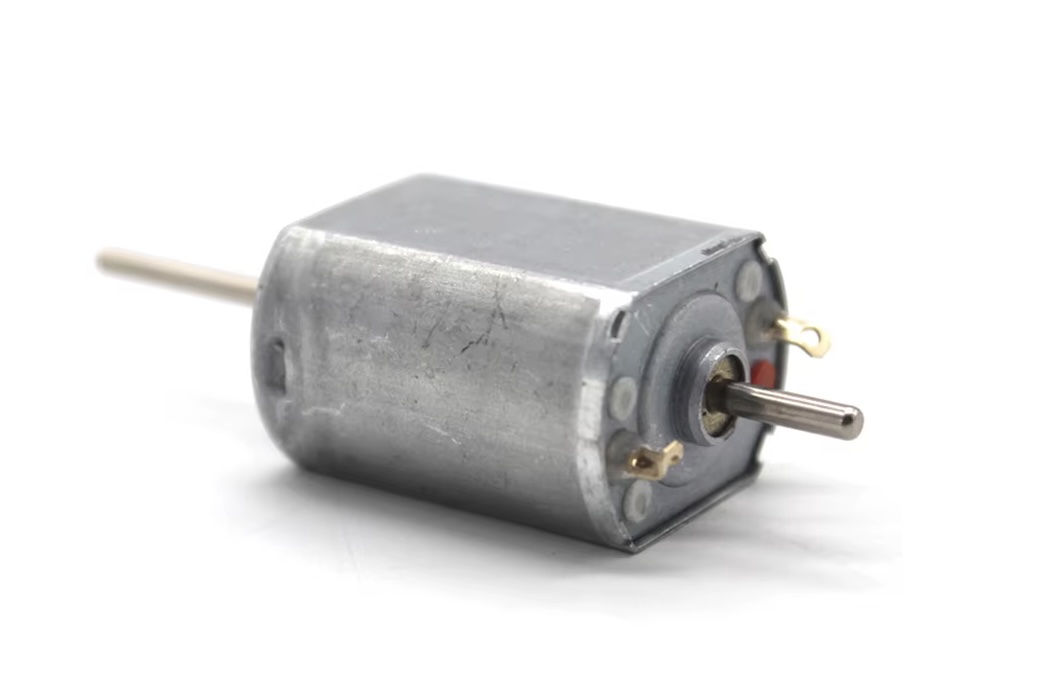

1 x Double Shaft Worm Gear FK130SH Micro DC Motor
