Description
Specifications:
- Rated Load: AS PER SELECTION
- Rated Output: 1.0mV/V±0.15mV/V
- Zero Output: ±0.1mV/V
- Creep: 0.03%F.S./30min
- Input End: Red+(power), Black-(power)
- Output End: Green+(signal), White-(signal)
- Recommended operating voltage: 3 ~ 12 VDC
- Maximum operating voltage: 15 VDC
- Input Impedance: 1115±10%Ω
- Output Impedance: 1000±10%Ω
- Connection: red wire to +E,black wire to -E,Green wire to +S, White wire to -S
Packing List:

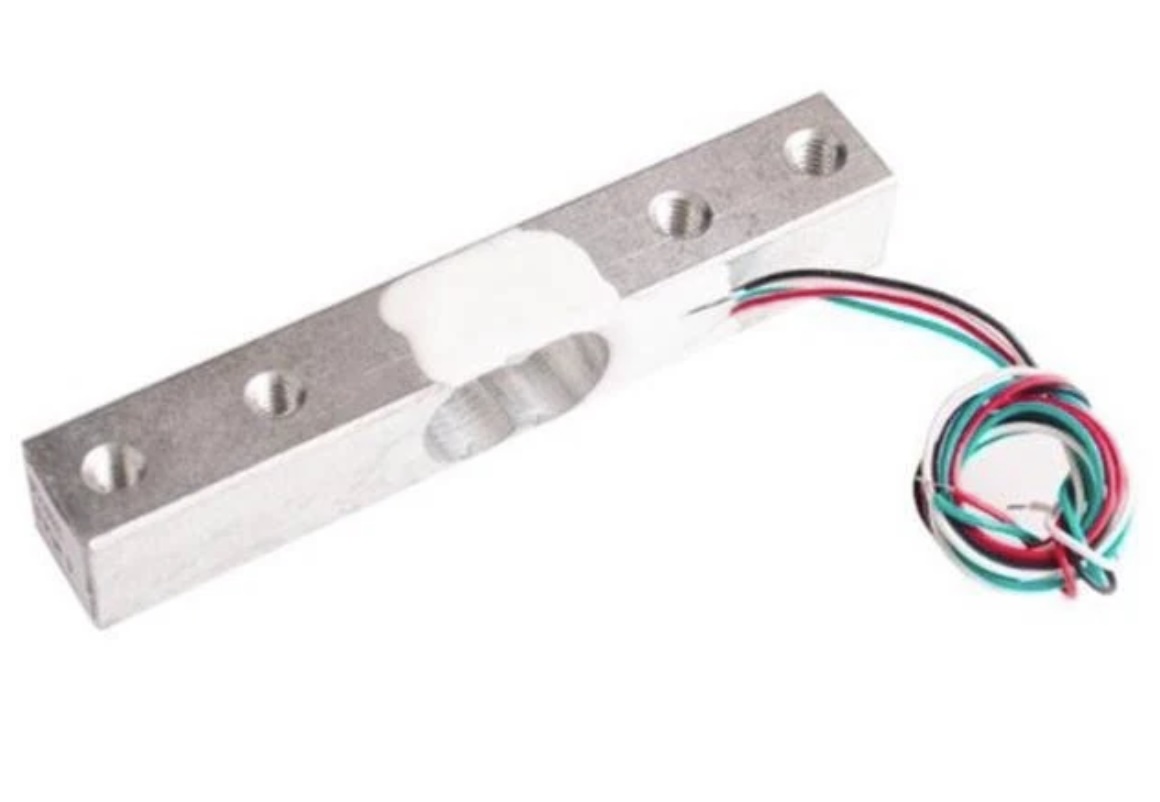

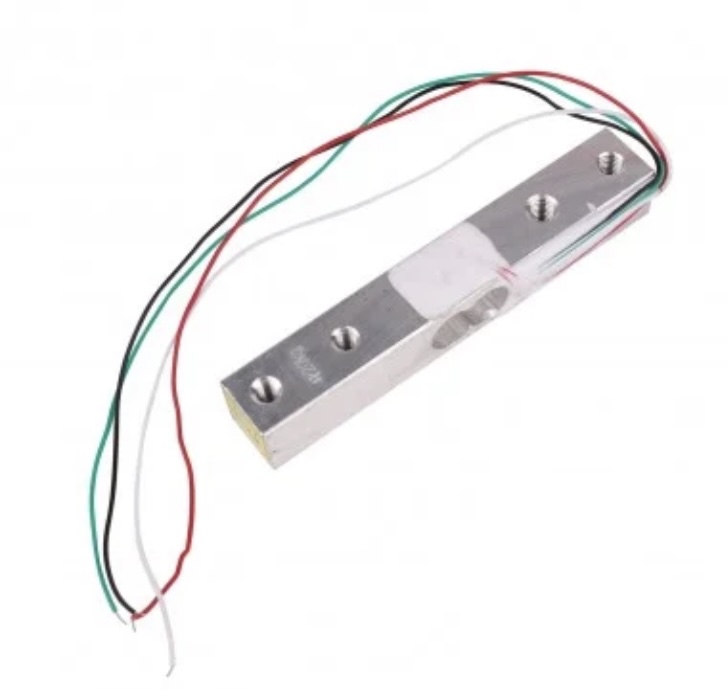

1 x Load Cell as per selection
NOTE: This listing DOES NOT include the sensor – this is the LOAD CELL ONLY
You can purchase the sensor separately from this link: HX711 Sensor Module
